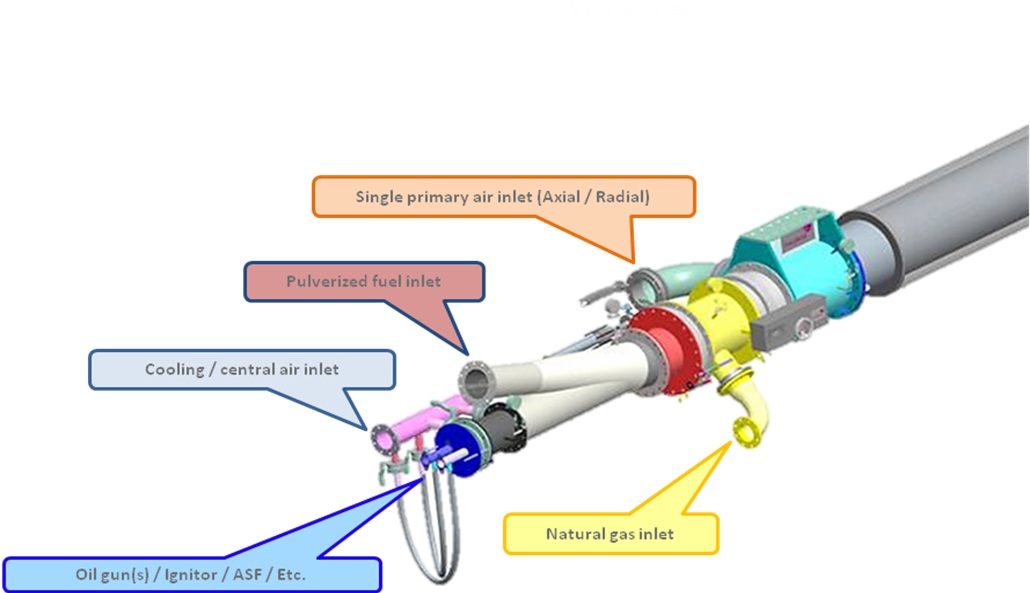

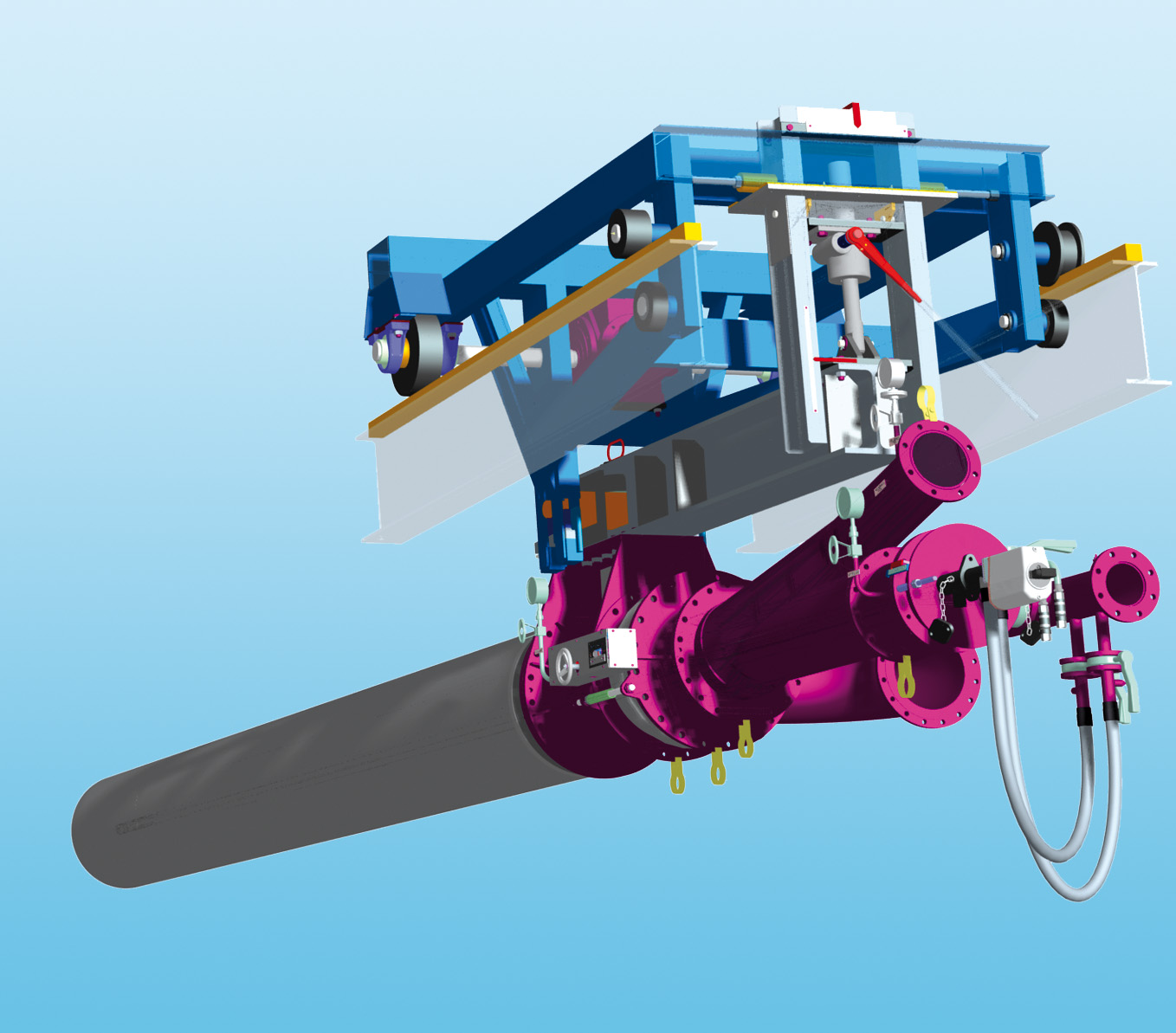

NOVAFLAM® Rotary Kiln Burner

  • High flexibility
  • Easy to operate
  • Repeatable flame shaping adjustments
  • Single primary air supply
  • Low NOx proprietary version
  • Firing high % of Alternative Solid Fuels (ASF)

Fuels

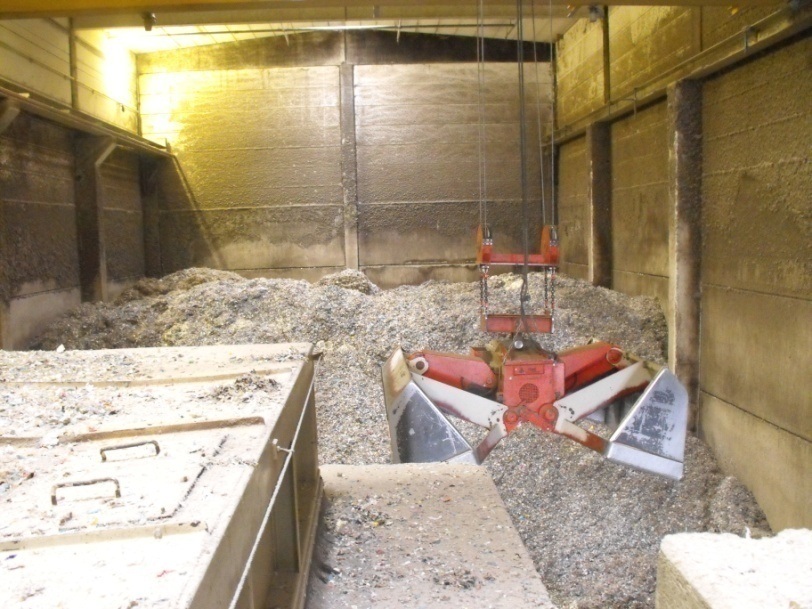

coal, petroleum coke, anthracite, lignite, heavy oil, diesel oil, natural gas, alternative solid fuels (plastics, woodships, saw dust, animal meal, fluff, etc…), waste oils, solvents, process gases (LCV gas, coke oven gas, blast furnace gas etc..)

Output range:

  • From 10 MW to 200 MW

Primary air data

case by case from 7 to 10% flow rate, at 130 to 250 mbar pressure

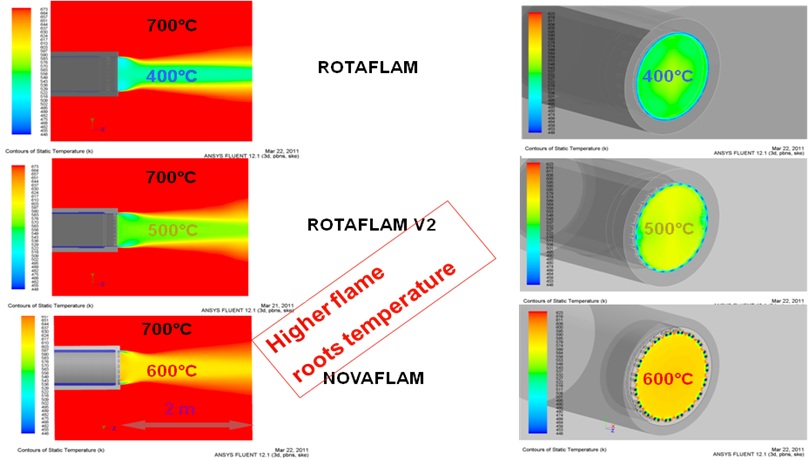

Effect of radial tip on secondary air suction

The special design of the NOVAFLAM® burner leads to a very high efficiency of its momentum, which is important for burning difficult fuels (e.g.: high substitution of Alternative Solid Fuels)
Waste fuel substitution rate up to 90%
More information can be found in the article
"DEPLOYMENT OF A NEW BURNER"
by Gael Le Piver of Fives Pillard France.
