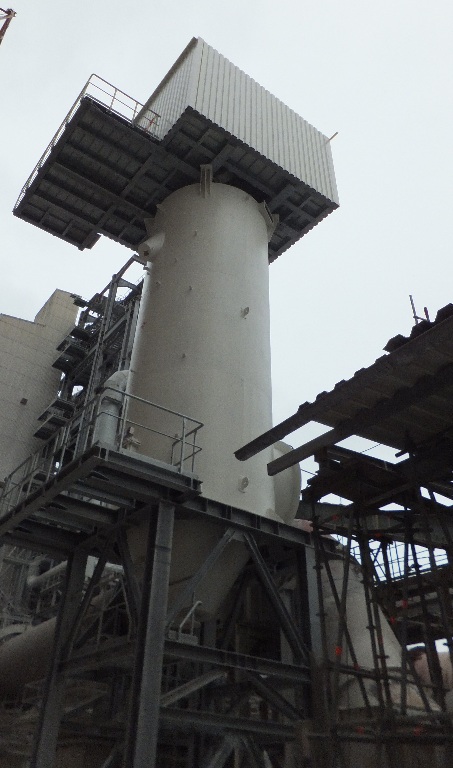

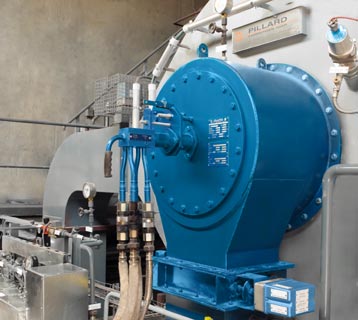

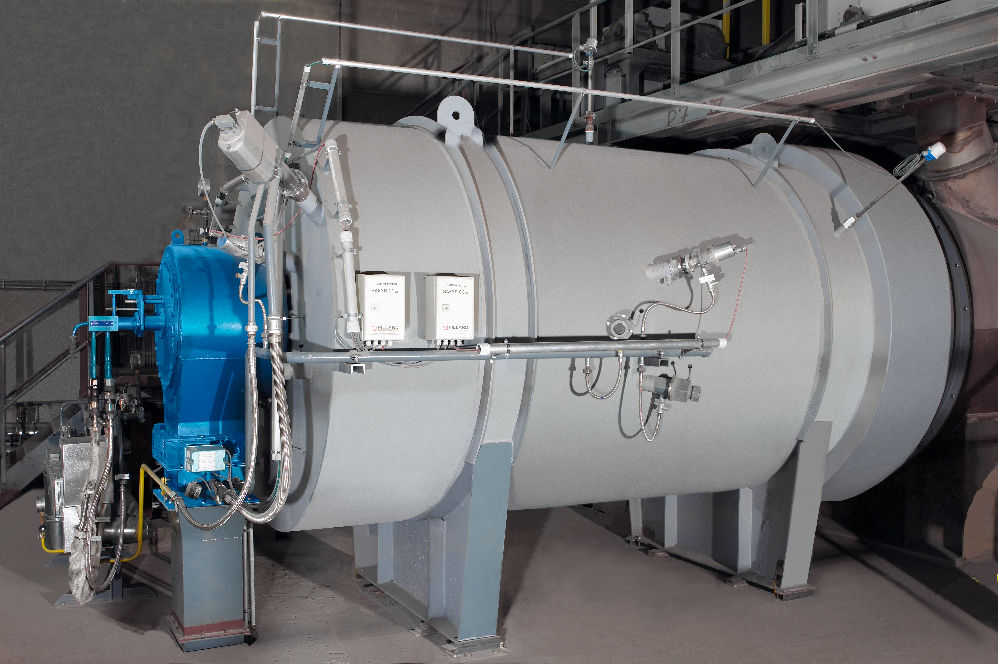

Hot gas generator

Hot gas generators are used in all technical processes which allow a direct contact between the product and the flue gas.

Field of application

  • Drying
  • Heating
  • Tempering
  • Dehydrating
  • Exhaust fume purification
  • Calcination
  • Initiating chemical processes
  • Expanded processes
  • Flue-gas heating
  • Thermal post-combustion

Range of performance

0,6 – 60 MW

Hot gas temperatures

  • Standard: 400 °C – 1.100 °C
  • Special design: between 100°C and just below flame temperature
  • In case of pulverised coal firing, up t o ash melting point

Fuels

Hard coal, lignite coke, anthracite, petcoke, sawdust ,alternative fuels, Oil of any viscosity as well as crude oil, creosote, bitumen, waste oil, liquid gas and solvents, Natural gas, coke gas, blast furnace gas, biogas, liquid gas

Advantages

  • Durable construction
  • Easy operation and minimal maintenance
  • High level of safety in operation, thus greater reliability
  • Low operating costs, partly because of minimal loss of combustion and tempering air pressure
  • Largest turn down ratio for many different fuels, influenced by fuel quality
  • Designs for operation with high pressure or partial vacuum
